Toshiba Releases 600V Small Intelligent Power Devices for Brushless DC Motor Drives

Logo

-Through hole type small package helps reduce mounting area and the size of circuit boards for motor drives-

KAWASAKI, Japan–(BUSINESS WIRE)–Oct. 26, 2023

Toshiba Electronic Devices & Storage Corporation ("Toshiba") has launched two products of 600V small intelligent power device (IPD) for brushless DC motor drive applications such as air conditioners, air cleaners, and pumps. Volume shipments of “TPD4163K” and “TPD4164K,” which have output current (DC) ratings of 1A and 2A, respectively, start today.

This press release features multimedia. View the full release here: https://www.businesswire.com/news/home/20231025837780/en/

Toshiba: 600V small intelligent power devices for brushless DC motor drives (Graphic: Business Wire)

Toshiba: 600V small intelligent power devices for brushless DC motor drives (Graphic: Business Wire)

Both new products are housed in a through hole type HDIP30 package, which reduces the mounting area by approximately 21% against Toshiba’s previous products[1]. This helps reduce the size of motor drive circuit boards.

As power supply voltage may fluctuate significantly in regions with unstable power supply, the voltage has been increased from the 500V of Toshiba’s previous products[1] to 600V, which improves reliability.

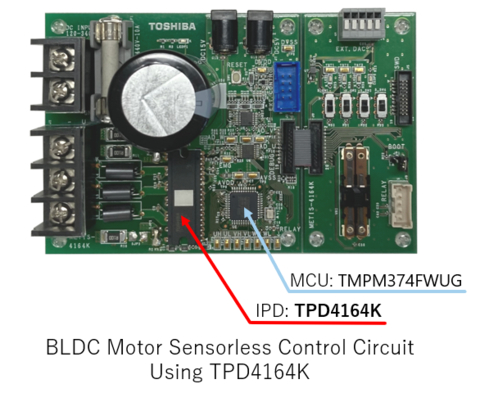

A “Reference Design for Sensorless Brushless DC Motor Drive Circuit” that utilizes the functions of the new TPD4164K with a TMPM374FWUG microcontroller with vector control engine is available from today on Toshiba’s website.

Toshiba will continue to expand its product line-up with improved characteristics, to improve design flexibility, and to contribute to carbon neutrality through energy-saving motor control.

Note:

[1] DIP26 package products (end-of-life products): TPD4123K, TPD4123AK, TPD4144K, TPD4144AK, TPD4135K, TPD4135AK

Applications

Brushless DC motors in home appliances

  • Fan motors (air conditioner, air cleaner, ventilation fan, ceiling fan, etc.)
  • Pumps

Features

  • High power supply voltage rating to secure operation margin for power supply voltage fluctuations: VBB=600V
  • Small package

    Through hole type HDIP30: 32.8mm×13.5mm (typ.), t=3.525mm (typ.)

Main Specifications

(Ta=25°C unless otherwise specified)

Part number

TPD4163K

TPD4164K

Absolute maximum ratings

Power supply VBB (V)

600

Output current (DC) Iout (A)

1

2

Operation ranges

Operating power supply voltage

VBB (V)

max

450

Electrical Characteristics

Output saturation voltage

VCEsatH (V)

typ.

2.6

(IC=0.5A)

3.0

(IC=1A)

VCEsatL (V)

FRD forward voltage

VFH (V)

typ.

2.0

(IF=0.5A)

2.5

(IF=1A)

VFL (V)

Package

Type

Through hole

Toshiba’s name

HDIP30

Size (mm)

32.8×13.5 (typ.), t=3.525 (typ.)

Protect function

Over-current/thermal shutdown/under-voltage/

shutdown function controlled by SD pin

Sample Check & Availability

Buy Online

Buy Online

Follow the links below for more on the new products.

TPD4163K

TPD4164K

Follow the link below for more on Toshiba Intelligent Power ICs.

Intelligent Power ICs

Follow the links below for more on Toshiba’s solutions proposals using the new products.

Application

Air Conditioners

Air Cleaners

To check availability of the new products at online distributors, visit:

TPD4163K

Buy Online

TPD4164K

Buy Online
